1700 x 900 ABS Stone Low Profile Shower Tray
Apple Shopping Event
Hurry and get discounts up to 20% Read more

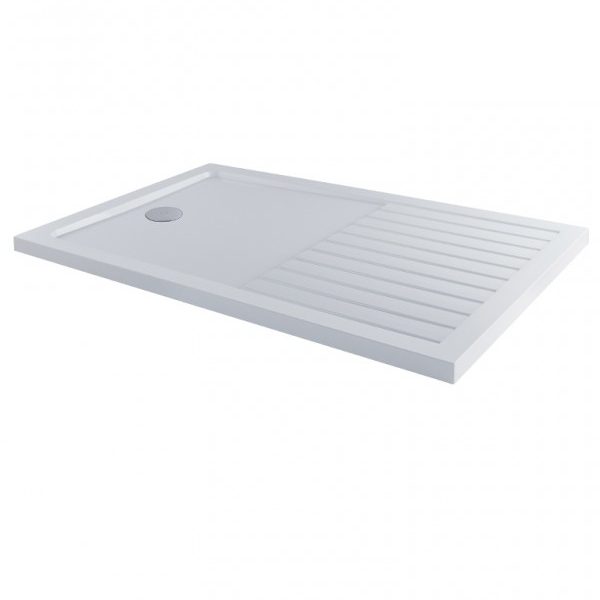

A modern 1700 × 900 mm rectangular shower tray from the MX Elements collection. It features a slim 40 mm profile and a glossy ABS acrylic cap over a stone-resin core. Offering the premium look of cast stone while being approximately 40% lighter, it’s designed for easier handling and installation.
£245.00
Product Description
1. Product Details
This 1700 × 900 mm rectangular flat‑top shower tray from MX’s Elements range features a slim 40 mm profile and a high‑gloss ABS acrylic surface over a stone‑resin core. It offers a premium aesthetic but is approximately 40% lighter than cast‑stone equivalents, making installation easier and more convenient.
2. Product Features
-
Material & Finish: Durable stone‑resin core with a gloss ABS acrylic cap—resistant to scratches, discolouration, and staining.
-
Profile Height: Ultra‑slim 40 mm for minimal step-in and a sleek finish.
-
Weight: Around 49 kg, yet much lighter than traditional stone resin trays.
-
Waste Included: Standard 90 mm WRAS-approved high‑flow waste included (top-access dome style, easy to maintain).
-
Standards: Manufactured in the UK using WRAS-approved, phthalate‑free materials, compliant with BS EN 14527 safety standards.
-
Installation Base: Underside is contoured for clear leg-position marking. Compatible with the optional MX Easy‑Plumb riser kit, which raises tray by ~96 mm for access and concealed pipework.
-
Warranty: Backed by a 25‑year manufacturer’s guarantee covering defects in materials or workmanship.
3. Additional Information
The 1700 × 900 mm MX Elements tray delivers sophisticated design and high functionality. Its flat-top surface and polished gloss finish offer minimal maintenance and contemporary appeal.
Despite its large dimensions, the tray remains manageable due to its engineered lightweight construction. The molded underside aids precise installation, and the MX Easy‑Plumb kit can lift the tray for underfloor clearance (~95 mm) and hide the waste plumbing neatly.
Made in the UK under strict quality control and assembled from certified materials, this tray offers both durability and installer-friendliness.
4. Specification
🔧 Specification | Details |
---|---|
Dimensions | 1700 × 900 × 40 mm |
Material / Finish | Stone‑resin core with glossy ABS acrylic cap |
Weight | ~49 kg |
Waste | 90 mm high‑flow waste not included |
Waste Position | Offset centre along the long side |
Standards & Certification | BS EN 14527 compliant; WRAS-approved; phthalate‑free |
Installation Design | Contoured underside; Easy‑Plumb compatible |
5. Guarantee Details
🛡️ Warranty Aspect | Coverage |
---|---|
Duration | 25 years (product registration required) |
Included | Defects in materials or finish |
Excluded | Misuse, improper installation, and unauthorised modifications |
Limitations | Warranty void if installation deviates from manufacturer’s instructions |
6. Contents Section
📦 Package Item | Included / Notes |
---|---|
Tray Unit | 1 × MX Elements 1700 × 900 × 40 mm rectangular tray |
Shower Waste | Included — 90 mm high‑flow waste (chrome dome) |
Installation Guide | User manual included; Easy‑Plumb riser kit sold separately |
7. About the Brand
MX Trays’ Elements collection combines refined minimalist design with intelligent UK engineering. Made from ABS-capped stone-resin, Elements trays deliver premium aesthetic without excessive weight. They feature low-profile (40 mm), WRAS and BS EN 14527 compliance, and contoured undersurfaces designed for compatibility with Easy‑Plumb riser systems. With a reassuring 25‑year warranty, MX trays are a reliable and stylish choice for modern shower installations.
